PCMCIA Expander/Adapter Through a Compact Flash Slot

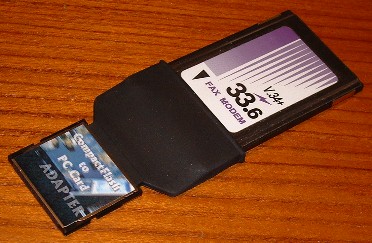

PCMCIA-CF Adapter, Model PCA-CF
Great portable PCMCIA adapter for your PC, PDA or PocketPC with a Compact Flash slot. Add a 16-bit PCMCIA card through your device's type I or II CF slot!

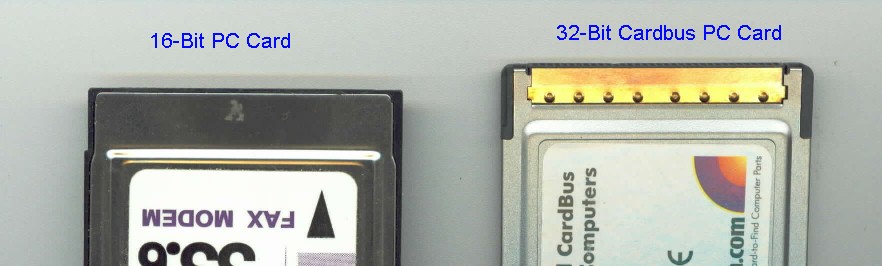

Not sure if your card is 16 or 32-bit? Click here to see the difference. 32-bit PC cards have the gold/copper plated edge on the insertion end.
Product Description:
1. Converts any CF Type I / Type II slot into a 16-bit storage, communication or network PC Cards type I/II slot. It won't support 32-bit cardbus cards or SRAM or linear flash cards. 2. Flexible, durable, soft circuit board with rubber protection 3. Small, portable, and light weight 4. No driver needed 5. No external power needed |
Applications:
| Memory Card Adapters, PC Card hard drives, ATA Flash
PC Cards, 16-bit Wireless LAN cards, Modem cards, LAN Cards, GPS Receiver Cards, GSM / GPRS Cards, Communications Cards **Warning**: 1. Operating Voltage - Typical Pocket PC CompactFlash provides 3.3V. The user should confirm if the PC Card operating voltage is compatible with the Pocket PC. 2. Power Consumption - Typical Pocket PC CompactFlash slot can supply up to 500mA of current. However, some PC Cards may require as much as 700-1000mA. **Does not support iPAQ 22XX series due to voltage constraint on the PDA.** 3. Driver Availability - The user should first verify if the driver support is provided by the PC Card vendor to use with Pocket PC. |
PRICE.
Please click here
for updated price.
WARRANTY &
SUPPORT. Tech support
from manufacturer and PSI. 6 month warranty. For tech support
and/or RMA, please go to http://www.psism.com/support.htm.
TO ORDER OR INQUIRE. Please click here to place an online order or send e-mail inquiry to sales@psism.com or call 1(301) 572-2168. We accept Visa, MasterCard, Discover and American Express as well as government and university POs. International orders may be conditionally accepted. Please click here to order or view our ordering information page.
