44-Pin Mini IDE Plain Form	40-Pin Mini IDE Plain Form	Power cable for 40-pin Module

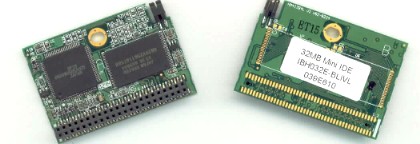

Mini IDE Horizontal (L- Form), No Housing

There are several players in manufacturing and marketing of this product. They may be called Mini IDE, MIDE, DiskOnChip IDE, ATA-Disk Chip, IDE Flash Module, Drive On Module, Mini_IDE, Flash Disk Module, etc. Some are supplied with housing and some are not.

Mini-IDE (MIDE) Flash Disk is a high-reliability, low-cost, flexible Flash solution for applications that require low power consumption, ruggedness, reliability and compatibility in a compact environment. Its Flash technology design is built to work in the harshest environments where intense vibration and shock cannot be allowed to compromise data integrity. MIDE Non-recoverable error rate is less than 1 error per 10¹⁴ bit-reads with no seeks errors and 1,000,000 hours Mean time between failure (MTBF). Its solid-state construction requires no preventative maintenance.

The MIDE Flash Drive is a flash technology based on IDE interface, using an ATA controller chip interfacing with NAND/AND based flash memory, fully compatible with ATA/ATAPI-4 by emulating IDE hard disk drives, MIDE is the perfect choice for solid-state mass-storage in Industrial Applications operating in harsh environment. Capacities are available from 16MB to 384MB unformatted. Three different shapes to accommodate your needs:

• Plain-form Mini IDE plug-in vertically

• Low-profile L-form Mini IDE plug-in leftward or rightward horizontally.

• They are your great choices for the rugged PCs, industrial PCs and embedded PCs.


 C F C E C A C T C U C R C E C S C

C NAND/AND flash-based technology
C Supports capacities from 16MB up to 384MB unformatted
C Standard 40-pin or 44-pin IDE connector
C Fully IDE compatible; conforms to ATA/ATAPI-4 specification
C Versatile form-factors to meet different mechanical requirements
C Master/Slave selectable
C Installation as conventional Hard Disk Drive
C No drivers or proprietary BIOS needed
C Supports extended temperatures from -20EC ~ +85EC

 C A C P C P C L C I C C C A C T C I C O C N C S C

Embedded System

Mission-critical applications

IA appliances

C Set-Top-Box C Gaming System

C Web Phone C Web Pad

Networking

C Fire-wall system C Router

C Thin Client C Terminal Client

 C S  C P C E C C C I C F C I C C C A C T C I C O C N C

C Connectors
          C 40-pin IDE pin-pitch: 2.54 mm
          C 44-pin IDE pin-pitch: 2.00 mm

C Form-factors
          C 40 or 44-pin IDE Plain-form, Installs vertically
          C 40 or 44-pin IDE L-form, Installs horizontally
          C Plain-form Mini IDE has housing enclosure; L-form is bare PCB

C IDE Modes (Without DMA support)
          C PIO Mode 0, 1, 2

C Supported Capacities
          C 16MB / 32MB / 48MB / 64MB / 96MB / 128MB / 192MB / 256MB / 384MB

C Performance
          C Data Transfer Rate: To/from Flash Memory (Burst mode): up to 20Mbytes/sec
          C Data Access Rate: <1.5ms
          C Read Speed: 2.9Mbytes/sec
          C Write Speed: 2.15Mbytes/sec
          C Minimum Seek Time: 0.9ms

C Reliability
          C MTBF (Mean Time Between Failure): 1,000,000 power-on hours
          C Error Rate: Less than 1 bit error in 10¹⁴ bits read (min.)
          C 16-bit polynomial ECC supporting one random word of "sector-on-the-fly" ECC function
          C Endurance: 300,000 Write/Erase cycles
          C Data Retention: 10 years

C Power Requirement
          C Operating Voltage: 5Vcc ⁺/-10%
          C Typical Power Consumption:
                    Read Mode: 30mA(max.)
                    Write Mode: 67mA(max.)
                    Standby Mode: 16.0mA(max.)
                    Sleeping Mode: 2.05mA(max.)

C Environment Conditions
           C Operating Temp
                    Standard Level: 0EC ~ 70EC
                    Extended Level: -20EC ~ +85EC
           C Storage Temp: -20EC ~ +85EC
           C Relative Humidity: 95%(max.)
           C Shock: 1000G
           C Vibration: 15G

C Supports Operating Systems
           C DOS, Win95/98/2000/ME/NT/CE/XP, Linux, VxWorks, SOS+, UNIX, QNX

C Power Source: With or without 4-pin Power Cable

Note: +5Vcc is an optional item upon special request

C Weight
          C 40pin P-form: 12.6g
          C 40pin L-form: 8.8g
          C Power Cable: 4.8g
          C 44pin P-form: 10.0g
          C 44pin L-form: 8.6g

C Measurement
          C 40pin P-form: L*W*H, (Dimension Drawing)
                    26.0 x 55.5 x 6.2 ⁺/-0.2 mm
          C 40pin L-form: L*W*H, (Dimension Drawing)
                    Hitachi Mini IDE: 30.0 x 55.0 x 9.1 ⁺/-0.2 mm
          C Power Cable: Length 300.0 mm
          C 44pin P-form: L*W*H, (Dimension Drawing)
                    26.0 x 49.2 x 6.0 ⁺/-0.2 mm
          C 44pin L-form L*W*H, (Dimension Drawing)
                    Hitachi Mini IDE: 32.5 x 48.0 x 5.7 ⁺/-0.2 mm

 C O C R C D C E C R C I C N C G C
C I C N C F C O C R C M C A C T C I C O C N C

C Definition of Part Number
          C Example:

C Indication:
