Industrial-Grade SLC mini PCI-e Flash (MPM) Modules

PSI supplies Industrial-Grade SLC mini PCI-e Flash (MPM) Modules for industrial applications. Two makes are supported. Please click on the link below to find out more.

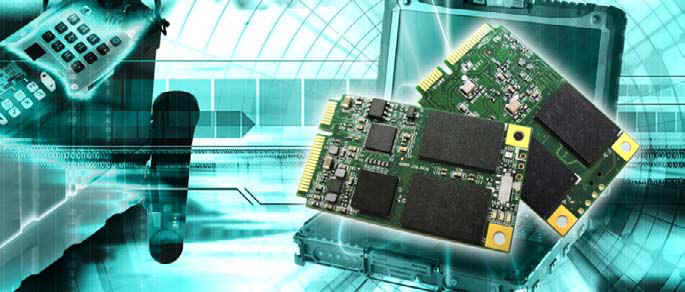

APRO Industrial-Grade SLC mini PCI-e Flash (MPM) Module
supports Write Protect Function

Features:

* SLC-NAND type flash technology
* Compliant with PCI Express Gen. 1
* Compact form factor for highly integrated system
* Supports standard ATA command
* Bootable for system installation
* Supports write protect function by switch
* Performance up to 140 MB/sec
* Capacity from 2GB to 64GB

Specifications

Compatibility: Compliant with PCI Express Gen. 1,  Compliant with ATA/ATAPI-7
Flash Technology: SLC-NAND type flash based
Host Interface: mini PCI-e connector with pure 52 pins, mini PCI-e pin out
Performance
     ˇ´ Data transfer mode: PIO-4/MWDMA-6 compatible
     ˇ´ Sequential read: 140 MB/sec (Max. /with 4-channel)
     ˇ´ Sequential write: 122 MB/sec (Max. / with 4-channel)

Environmental specification
     ˇ´ Operating temperature: STD. 0˚C ~ 70˚C / IND. -40˚C ~ +85˚C
     ˇ´ Non-operating temperature: STD. -20˚C ~ *80˚C / IND. -50˚C ~ +95˚C
     ˇ´ Humidity: 10% ~ 95% non-condensing
     ˇ´ Vibration: 15G compliance to MIL-STD -810F
     ˇ´ Shock: 1500 G, compliance to MIL-STD -810G
     ˇ´ Altitude: 70,000 feet
Write protect function :  by switch
Power consumption
     ˇ´ Power requirement: +3.3V + 5%
     ˇ´ Reading mode: 226 mA (Max.)
     ˇ´ Writing mode: 325 mA (Max.)
     ˇ´ IDE mode: 128 mA (Max.)
Reliability
     ˇ´ Wear-leveling: Static wear-leveling algorithms
     ˇ´ MTBF: > 4,000,000 hours
     ˇ´ ECC: 12 bits per 512 bytes block
     ˇ´ Endurance: > 2,000,000 cycles
     ˇ´ Data retention: 10 years
Physical specification
     ˇ´ Weight (max.): 8.0g + 1g / 0.3 oz.
     ˇ´ Dimension (WxLx H): (51.00 x 30.00 x 3.50) mm


Conformal coating: Option for special request
Warranty:
     ˇ´ Standard grade: 3 years
     ˇ´ Industrial grade: 5 years



Order Information:

As an alternative to the Mini PCIe drives above, you may click here to see Memoright's SLC Mini PCIe SSDs.

All APRO industrial flash storage drives and cards are made-to-order and they are for special order only. Lead time is up to 3 weeks. Special orders are non-returnable and non-exchangeable. Products are covered by manufacturer's warranty.
