Internal & External PCMCIA Card Readers/Writers
(PC Card Drives) for Desktops, Laptops & Macs


Front PCI 16- & 32-bit Universal PC Card Reader Bootable IDE-CF Adapter for Compact Flash Cards USB2 External Reader for ATA, SRAM & Linear Flash PCMCIA Memory Cards

These internal and external PC card readers/writers (also known as PC card drives or socket controllers) can significantly simplify your tasks of transporting your files among your digital cameras, palmtops, notebook PCs, desktop PCs, etc.

Please click the following links to jump forward to your desired read-writer.


While most of the readers/writers on this page only support PCMCIA ATA-compliant storage cards  (such as ATA flash card, compact flash card, smartmedia card, secure digital (SD) card, etc.), the PCI-interfaced universal card drives (readers/writers) go even further: they also support almost all kinds of 16-bit PCMCIA cards, and some models can support both 16-bit and 32-bit cardbus cards, including data acquisition, networking, wireless LAN & wireless modem PC cards,.

For PCs and Macs with USB ports, please be advised that  USB read-writers are not universal and they normally can not support  non-storage cards, such as wired or wireless modem, ethernet, and other I/O controller cards.

Note:
For customers who use PCMCIA SRAM and/or linear flash cards:

Some of our  PCI-based  card readers can read/write certain brands (not all) of
linear flash and SRAM cards under Windows. We now have drivers for SRAM and linear flash cards under Win 95, 98, Me, XP & 2000. For Windows 7, 8 & 10 users, only the external USB OmniDrive and OmniDrive LF readers can read-write SRAM or SRAM and linear flash cards. Please check here.

For Panasonic P2 cards, there are several readers that can read-write the cards. Make sure you have the P2 card driver installed on your PC first. Please see the reader candidates here.

For PCMCIA ATA Flash cards, there are several readers that can read-write the them under Windows XP, 2000,  7, 8 & 10 Windows intrinsic driver will work. Please see the reader candidates here.

For Dexis X-Ray PCMCIA cards, there are several readers that can support the cards. Make sure you have the Dexis card driver installed on your PC first. Please see the reader candidates here.



ORDER INFORMATION

For volume / OEM discounts, please e-mail sales@psism.com.

PCI Universal Front-Loading PC Card Readers / Writers
Note: These PCI readers do not need a device driver for Windows XP, Vista, 7 & 8. Let Windows finds these PCI readers and install native driver automatically. Supports Fortezza-compatible drivers.

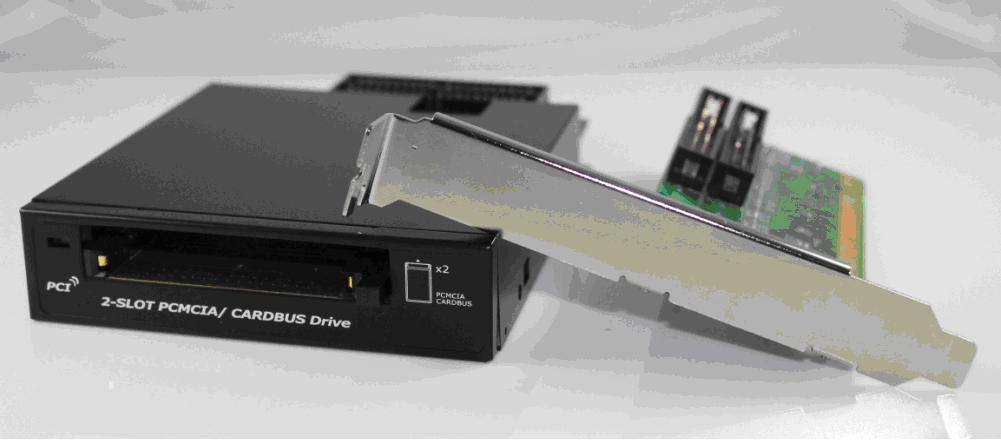

  • PSI PCI to 2-slot  support 16-bit + 32-bit cardbus Front-access  PCMCIA Card Reader with black faceplate & 60cm flat cable.; For Microsoft Windows Vista, XP, 2000,  7, 8 & 10 or Mac OS 10.4.10,   Work with dental office Dexis Digital X-Ray card, Panasonic P2 memory cards (make sure you have the P2 driver for your system), ATA flash card,  wireless modems and other wireless LAN cards!
    P/N: PCD-220CS
$159
  • PSI 3-in-1 front-access design for 16-bit PCMCIA cards + 32-bit Cardbus Cards + ExpressCard 34/54 Cards.
    Supports type I/ II/ III PCMCIA cards (Panasonic P2, Dexis X-ray, ATA PC cards, etc.) and 34/54 Expresscards. For Win 2000, XP, Vista,  7, 8 & 10  (Model: PCD-TP-EXP)
NA
  • Mounting Kit - 3.5 to 5.25 Inch Drive Bay. For the above front-mount PC card readers.  Beige color, (P/N:MK3T5)
$10

PCI Universal Rear-Mount PC Card Readers / Writers
They don't occupy your PC's drive bay space! Great for your Wireless LAN, wireless modem, flash cards, SRAM cards & others. You do not need a driver for Windows XP and up. Let Windows find these PCI readers and install native driver automatically.
  • PSI PCI 16-bit + 32-bit Cardbus Rear-Mount PCMCIA Card Reader, Model PCD-TP-202CS:   Two type II slots to read type I, II or III cards.  PCI card: 3.5"x 6.0".  For Win 95, 98, Me, 2000, XP, Vista, Win 7, 8 & 10.
    Work with dental office Dexis Digital X-Ray card, Panasonic P2 memory cards (make sure you have the P2 driver for your system), ATA flash card,  wireless modems and other wireless LAN cards!

$125

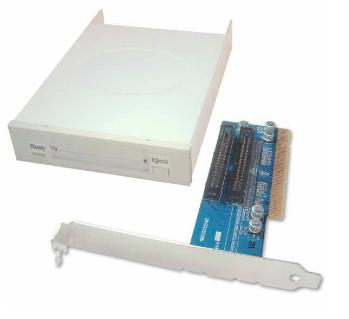

  • PSI PCI 16-bit + 32-bit CardBus Rear-mount single-slot PCMCIA Card Reader (P/N: PCD101CS).  Read one type I, II or III 3V/5V card. For Win 95, 98, Me, 2000, XP & Vista, 7, 8 & 10. NT driver is optional. Recommended for wireless PC cards. PCI card size: 4.75"x 3.6"
    Work with dental office Dexis Digital X-Ray card, Panasonic P2 memory cards (make sure you have the P2 driver for your system), ATA flash card,  wireless modems and other wireless LAN cards!

NA

IDE Internal PC Card Readers / Writers
(These readers can only read the intended memory cards! Not for I/O cards.)
  • PSI front-slot internal IDE reader/writer (model IIC) with a single bootable slot for compact flash cards & microdrives..
     This model is also used on Akai MPC2000XL drum machines or the like that has an IDE expansion port. For MPC2000XL, please use OS 1.20 and up. Check it out at http://www.akaipro.com/
    Model
    IIC (Beige color, with 40-pin flat cable)

$105
  • PSI front-slot internal IDE reader/writer (model IIC) with a single bootable slot for compact flash cards & microdrives..
     This model is also used on Akai MPC2000XL drum machines or the like that has an IDE expansion port. For MPC2000XL, please use OS 1.20 and up. Check it out at http://www.akaipro.com/
    Model
    IIC-B (Black color, Special order, with 40-pin flat cable)

$95
  • PSI 2 front-slot bootable (model IICA) front-mount internal IDE reader/writer  with 1  Compactflash type II slot and 1 PCMCIA type III slot for ATA flash cards.
     This model was also used on Akai MPC2000XL drum machines or the like that has an IDE expansion port . For MPC2000XL, please use OS 1.20 and up. Check it out at http://www.akaipro.com/
$115
  • PSI internal bootable IDE-to-CF readers/adapters for compact flash cards.
click here
USB 3.0 External Readers / Writers
(This reader can only support the intended ATA type memory cards, including ATA PCMCIA cards, SD/ SDHC / SDXC card up to spec 3.0; capacity up to 2TB. )
  • External USB 2.0/3.0 high speed  Card reader. Read/write most of the common flash memory cards: CF1 / CF2 / SD / MMC1 / MMC2 / MD / T Flash / RS-MMC / XD etc. For Windows 10/8/7/VISTA/XP/2000/ME, Mac OS 9.x or above, Linux Kernal 2.4.2 or above, Chrome OS, etc. USB readers will NOT work under Windows NT.
  • This reader does not support SRAM,  linear flash and other I/O cards!
    Model:
    UATA-SD
$125

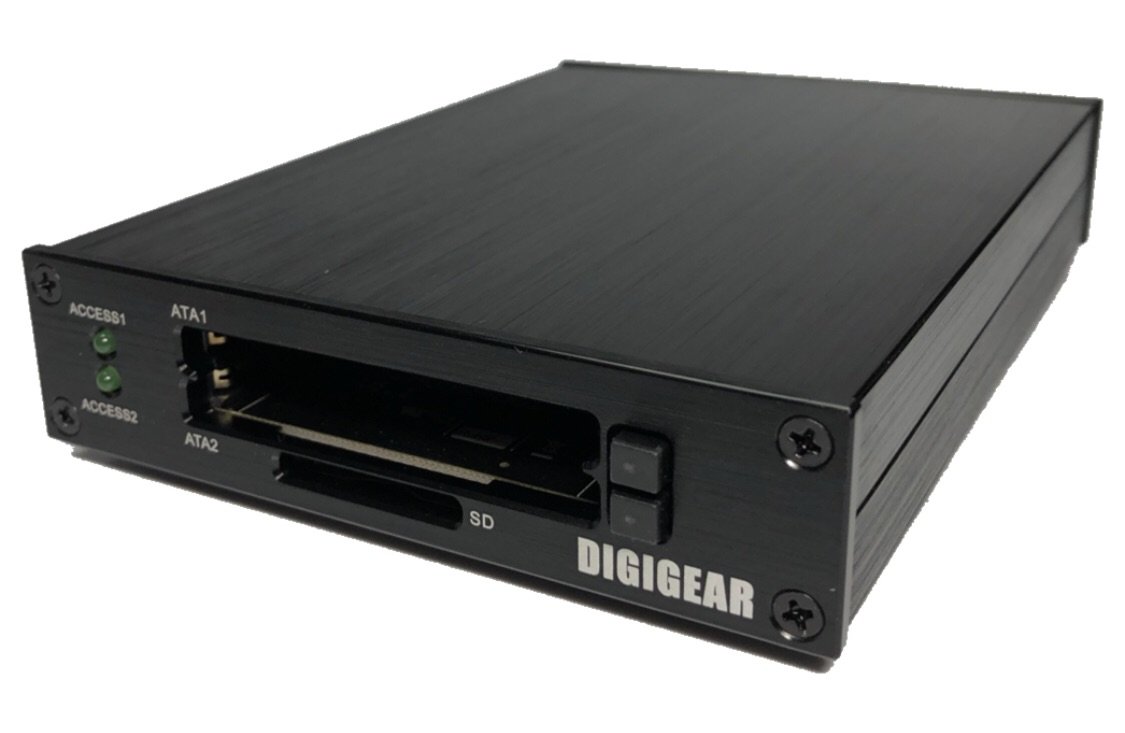

  • External USB 2.0/3.0 Dual ATA Flash PC card/PCMCIA & SD/SDHC/SDXC Card reader-writer : Model U2ATASD
    For
    Windows 10/8/7/VISTA/XP/2000/ME, Mac OS 9.x or above, Linux Kernal 2.4.2 or above, Chrome OS, etc. USB readers will NOT work under Windows NT.
  • This reader does not support SRAM,  linear flash and other I/O cards!
    Model:
    U2ATASD
$149

USB External Readers / Writers for ATA Flash, SRAM and Linear Flash PC Cards
(These readers are very easy to set up under  Windows. They can read/write the intended ATA type memory cards + SRAM and/or linear flash cards! )
  • CSM USB 2.0 external read-writer for PCMCIA type I 16-bit SRAM, ATA Flash (type II) and Hard Drive (type II) cards, Model OMNIDrive USB Pro. The SRAM software driver supports the  creation, reading & writing of binary images to and from cards. SRAM cards with and w/o attribute are supported. For Windows 98/98SE/ME/2000/XP/Vista/7/8 /10
  • If your SRAM card is 8-bit only, please inform us when you order.
$665
  • CSM USB  2.0  external  read-writer for PCMCIA 16-bit SRAM  (type I ), 16-bit linear flash (type I ), ATA Flash (type II) and Hard Drive (type II) cards, Model  OMNIDrive USB Pro-LF. The SRAM & LF software driver supports the creation/reading/writing of binary images to and from cards. SRAM and linear flash cards both with and w/o attribute are supported. For Windows 98/98SE/ME/2000/XP/Vista/7/8/10 . 0 ~ +70 C.
  • If your SRAM or linear flash card is 8-bit only, please inform us when you order.
$709
  • CSM USB  2.0  external  read-writer for PCMCIA 16-bit SRAM  (type I ), 16-bit linear flash (type I ), ATA Flash (type II) and Hard Drive (type II) cards, Model  OMNIDrive USB Pro-LF-WT. The SRAM & LF software driver supports the creation/reading/writing of binary images to and from cards. SRAM and linear flash cards both with and w/o attribute are supported. For Windows 98/98SE/ME/2000/XP/Vista/7/8/10. -40 ~ +85 C.
  • If your SRAM or linear flash card is 8-bit only, please inform us when you order.
$759

Internal SATA-to-CF Card Readers / Writers

  • PSI PSI Industrial 2.5" SATA to CF adapters. Bootable and Hot-Swappable!

Click here

ExpressCard-PCMCIA Card Reader / Writer
(Now you can use your PCMCIA cards on a laptop or desktop PC equipped with the ExpressCard slot.)
  • PSI 3- in- 1 front-access design for 16-bit PCMCIA cards + 32-bit Cardbus Cards + ExpressCard 34/54 Cards.
    Supports type I/ II/ III PCMCIA cards and 34/54 Expresscards: (wireless 3G, Serial I/O, SATA, Express memory cards, such as Sony SxS cards, etc.). For Win 2000, XP, Vista  7, 8 & 10  (Model: PCD-TP-EXP
NA
  • PCI Express (PCIe) front single-slot reader for ExpressCards:  easily to connect to your desktop PC's 64-bit Express PCI (PCIe) slot and add a front ExpressCard slot; supports a max. 5Gb/s data rate.  Now on your desktop you can use your laptop's ExpressCards: wireless 3G, Serial I/O, SATA, Express memory cards, such as Sony SxS cards, etc. Accepts both 34mm and 54mm Express Cards. Part #: PCE10
$145
  • PCI Express Control Board,  easily installed to your desktop PC's 64-bit Express PCI (PCIe) slot, supports 2.5Gb/s data rate. Add an ExpressCard  slot on the back of your desktop for your laptop's ExpressCards: wireless 3G, Serial I/O, SATA, etc. Accepts both 34mm and 54mm Express Cards.
    Part #:
    PCE01
click here
  • ExpressCard to 16-bit/32-bit PCMCIA card Adapter: supports 16-bit PCMCIA and 32-bit CardBus cards: ATA flash & SRAM cards, Dexis PCMCIA adapter card, P2 cards (for 32-bit Windows only), 32-bit LAN, 3G/3.5G I/O and wireless I/O cards. For Windows Vista  7, 8 & 10..   Part #: PCMCIA-EXP3
    Note: Dexis, P2, SRAM and linear flash cards may not be supported w/o drivers.
$55

  • Other ExpressCard readers and adapters
click here
USB Internal Readers / Writers
(These readers can only read the intended ATA type memory cards which do not include SRAM and linear flash cards!)

  • SCM  internal PCD-62U   This is an internal  6-slot USB 2.0 card reader/writer equipped with an industry standard Type II PC Card slot for ATA flash cards, and dedicated built-in slots for CompactFlash, SmartMedia, Memory Stick, xD and MMC/SD cards.  For OS supporting USB 2.0 standards. Defaulted to Read-only. 1 year warranty
$99

PCMCIA, CompactFlash, Secure Digital & SmartMedia Adapters

      For compact flash adapters, smartmedia adapters and PC card adapters (of type I & II CF cards, microdrives, smartmedia cards, memory sticks Pro, multimedia (MMC) cards, secure disk (SD) and XD cards, etc.), please click here

Back to Top

WARRANTY & SUPPORT.  Tech support from manufacturer and PSI. For tech support and/or RMA, please go to http://www.psism.com/support.htm


TO ORDER OR INQUIRE.  Please click here to place an online order or send e-mail inquiry to sales@psism.com or call (301) 572-2168. We accept Visa, MasterCard, Discover and American Express as well as government and university POs.  International orders may be conditionally accepted. Please click here to order or view our ordering information page.
