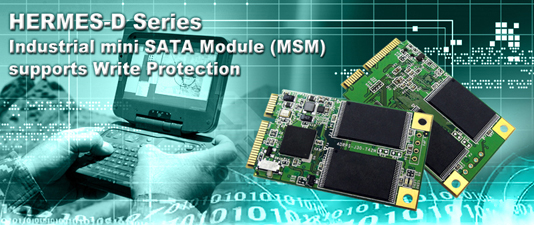

APRO Industrial SLC mini SATA Module (MSM)

with Write Protection



Product Features:

  • SLC-NAND type flash technology

  • Bootable for O.S. installation

  • mSATA module compatible with JEDEC Standard: MO-300 specification

  • Max. sequential read speed: 132.5 MB/sec, Max. sequential write speed: 117.9 MB/sec

  • Compliant with SATA 1.0a and SATA 2.6 specification

  • Supports write protect function by witch

Product Specifications:

Compatibility  SATA 1.0a and SATA 2.6 specification compliance
Compliant with ATA/ATAPI-7
Write protect function Mechanism design: By switch
Form-factor Standard mSATA form factor compliant with JEDEC MO-300 specification
Power consumption Power requirement: +3.3V ▒ 5%
Reading mode: 290mA (Max)
Writing mode: 350 mA (Max)
Sleeping mode: 180 mA (Max)
Host Interface mini PCI-e connector with pure 52 pins SATA-II pin out
Reliability Wear-leveling: static wear-leveling algorithms
MTBF: >4,000,000 hours
ECC: 8 bits per 512 bytes
Data retention: 10 years
Performance Data transfer mode: Serial ATA Gen-1 (1.5 Gbits) and Gen II (3.0 Gbits)
Sequential read: 132.5 MB/sec (Max)
Sequential write: 117.9 MB/sec (Max)
Random access time: 0.1 ms
Humidity 10%-95% non-condensing
Vibration 15G compliance to MIL-STD-810F
Short 1500 compliance to MIL-STD-810F



   Order Information:



HERMES-D Series Industrial mini SATA Module (MSM) SLC, with Write-protect switch
Wide Temp. (-40║ ~ 85║ C).   Warranty: 5 years
 Click here for specs. or here for data sheet.

Part Number

Description

Price



WBMSM002G-JDITI

APRO Industrial mini SATA Module, SLC, 2GB,  Wide Temp.-40║ ~ 85║ C

$55

WBMSM004G-JDITI

APRO Industrial mini SATA Module, SLC, 4GB,  Wide Temp.-40║ ~ 85║ C

$89

WBMSM008G-JDITI

APRO Industrial mini SATA Module, SLC, 8GB,  Wide Temp.-40║ ~ 85║ C

$155

WBMSM016G-JDITI

APRO Industrial mini SATA Module, SLC, 16GB,  Wide Temp.-40║ ~ 85║ C

$245

WBMSM032G-JDITI

APRO Industrial mini SATA Module, SLC, 32GB,  Wide Temp.-40║ ~ 85║ C

$450

WBMSM064G-JDITI

APRO Industrial mini SATA Module, SLC, 64GB,  Wide Temp.-40║ ~ 85║ C

$825

HERMES-D Series Industrial mini SATA Module (MSM)SLC, with Write-protect switch
Wide Temp. (0║ ~ 70║ C).   Warranty: 3 years
 Click here for specs. or here for data sheet.

Part Number

Description

Price



SBMSM002G-JDCTC

APRO Industrial mini SATA Module, SLC, 2GB,  Com. Temp. 0║ ~ 70║ C

$50

SBMSM004G-JDCTC

APRO Industrial mini SATA Module, SLC, 4GB,   Com. Temp. 0║ ~ 70║ C

$79

SBMSM008G-JDCTC

APRO Industrial mini SATA Module, SLC, 8GB,   Com. Temp. 0║ ~ 70║ C

$139

SBMSM016G-JDCTC

APRO Industrial mini SATA Module, SLC, 16GB,   Com. Temp. 0║ ~ 70║ C

$215

SBMSM032G-JDCTC

APRO Industrial mini SATA Module, SLC, 32GB,   Com. Temp. 0║ ~ 70║ C

$392

SBMSM064G-JDCTC

APRO Industrial mini SATA Module, SLC, 64GB,   Com. Temp. 0║ ~ 70║ C

$715



WARRANTY & SUPPORT.  Tech support from manufacturer and PSI. For tech support and/or RMA, please go to http://www.psism.com/support.htm


TO ORDER OR INQUIRE.  Please click here to place an online order or send e-mail inquiry to sales@psism.com or call (301) 572-2168. We accept Visa, MasterCard, Discover and American Express as well as government and university POs.  International orders may be conditionally accepted. Please click here to order or view our ordering information page.

Note: All MLC & SLC flash SSDs are made-to-order, so, order is non-cancelable and non-returnable once confirmed. Customers are advised to purchase samples to test and approve before placing mass orders.
